The Story
R1 Series — Rudder Pedals — Full-Foot Warbird Design

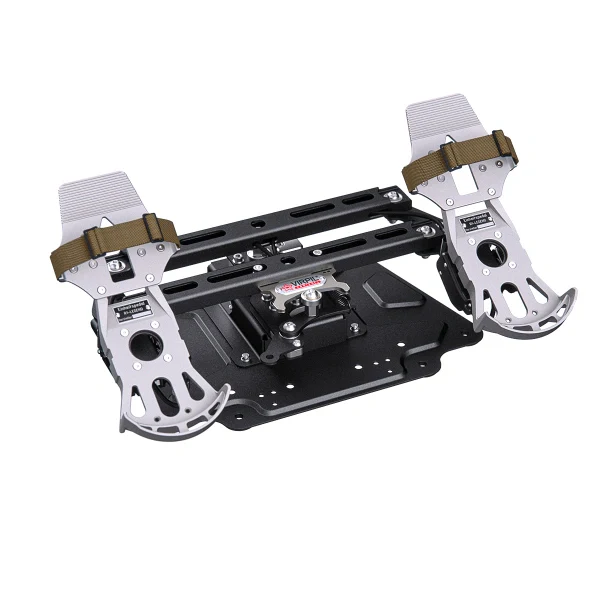

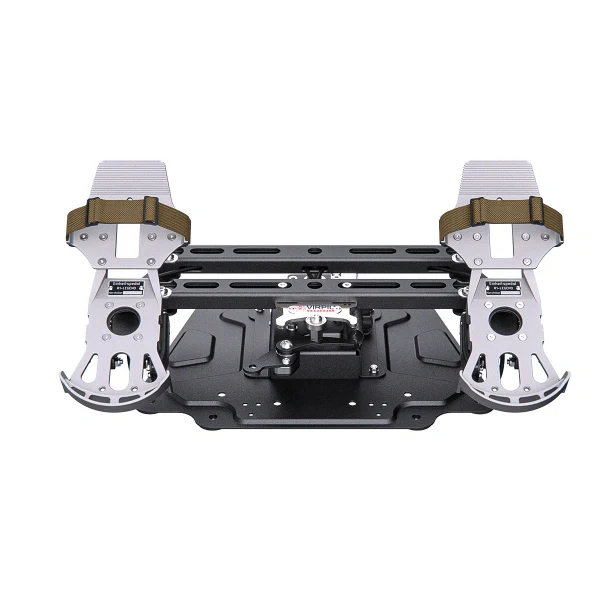

VPC R1-LEGEND Rudder Pedals
Full-Foot Warbird Combat Pedals.
The R1-LEGEND shares the same next-generation mechanism as the R1-FALCON: heavier-duty construction, an ultra-stable floor plate, infinitely adjustable spring tension via a twist dial, quick-swap cams, a wider pedal adjustment range, and USB/OUT daisy chaining. The difference is the footplate: full-foot combat warbird-inspired aluminium footplates with foot straps for total control. Built for every sim.
Official Australian and New Zealand VIRPIL Distributor
Official Australian and New Zealand VIRPIL DistributorAdjustable cam mechanism
Cams. Springs. Optional damper.
Cams
Springs
Optional damper kit
Hard Center cams
Provides a strong, tactile centre marker, ensuring you can always find the centre point without overshooting.
Heavy spring
Provides a strong centering tension for increased feel and realism.
Soft Center cams (pre-installed)
Reduces the detent when crossing centre, allowing more delicate and precise manoeuvring around the centre point while still leaving enough force to accurately find centre.
Standard spring (pre-installed)
Reduced centering spring tension allowing for faster and less fatiguing inputs.
The optional R1 Pedals Damper Upgrade Kit reduces spring bounce when returning to centre and can be configured to hold the pedals in a deflected position, perfect for helicopter and space sim pilots. The hydraulic damper force is linear and constant throughout its full range. Available separately →
No Center cams
Removes the detent entirely when crossing centre, ideal for those using the damper upgrade kit to prevent the pedals from centering for a smooth response over the full axis range.
Spring tension can also be infinitely adjusted using the twist dial without any disassembly. Mix springs and dial tension for your perfect feel.
Why R1-LEGEND
Full-foot warbird style. The same next-gen mechanism.
Infinitely adjustable spring tension via twist dial
Unlike the previous ACE pedals, the R1's spring tension is tuned infinitely with a simple twist dial, no disassembly and no tools. Dial in the exact centering force you want for any aircraft, from light GA to combat jet to helicopter.
Heavy-duty all-metal construction
Heavier-duty than the ACE series and built for both desktop and simpit setups. Cast aluminium footplates and a large, ultra-stable floor plate prevent tipping under aggressive rudder inputs, with precision metal construction and high-quality bearings throughout.
Quick-swap cam profiles
Three cam profiles are included: Hard Center, Soft Center (pre-installed) and No Center. Cams are quick-swap without full disassembly, so you can configure the centre feel to match your aircraft and flying style.
Fully adjustable ergonomics
A wider range of adjustment than any previous VIRPIL pedal: pedal spacing adjusts for different cockpit configurations, pedal angle adjusts across a 20-degree range, and pedal length adjusts for different foot sizes. An optional foot strap keeps your feet in total control at all times.
USB/OUT daisy chain connectivity
Dedicated USB and OUT connectors let multiple VPC devices be linked, saving USB ports on your PC. One USB connection from your PC can power an entire VIRPIL HOTAS chain.
Swappable footplates
Easily swap the R1-LEGEND full-foot footplates to the R1-FALCON half-foot combat style footplates (sold separately), or back again. The pedal style can be changed in minutes to suit your preferred flying style or cockpit aesthetic.
Comprehensive VPC Configuration Suite
The free VPC Configuration Suite offers axis curves, sensitivity adjustment, button mapping and more, all configurable to your exact flying style. The pedals work plug-and-play as a standard USB HID device with no drivers required.
R1 Series — next generation
R1-LEGEND Rudder Pedals.
Full-foot warbird style, built for every sim
The R1-LEGEND is the full-foot warbird variant of VIRPIL's newest-generation rudder pedal, sharing the identical mechanism as the R1-FALCON with a different footplate style. Full-foot combat aluminium pedals with foot straps make it perfect for warbird and combat sim pilots who prefer the feel of a traditional full-foot pedal. It delivers 3-axis input with independent toe brakes, all-metal construction, and an optional damper upgrade.
Adjustable ergonomics
Our most adjustable rudder pedals.

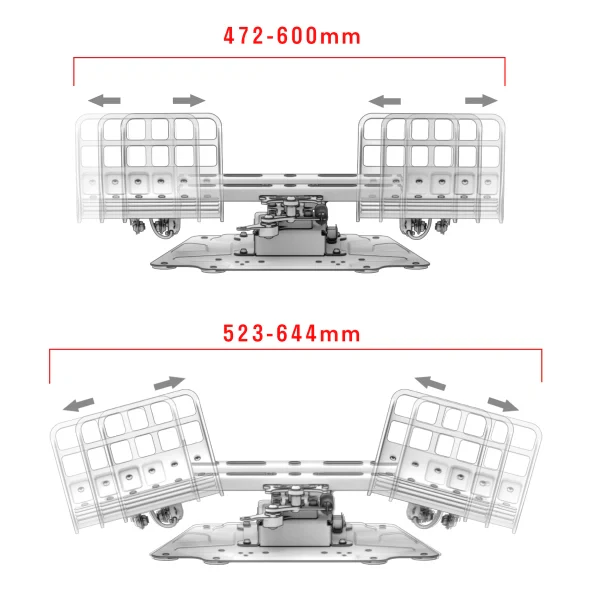

Adjustable pedal spacing
To suit all cockpits
Pedal spacing is adjustable to perfectly suit your cockpit configuration, whether you fly desktop, a racing-style rig, or a full simpit. The wider adjustment range makes the R1 compatible with a greater variety of cockpit setups than previous VIRPIL pedals.
Adjustable pedal angle
Optional pedal tilt for centre-stick setups
The pedal angle adjusts across a 20-degree range to suit your seating position and flying posture. Optional pedal tilt adds extra comfort when flying centre-stick configurations where a more angled pedal position is preferred.
Heavy-duty premium construction
CNC metal frame.
No compromise for the ultimate feel
Precision CNC metal construction and high-quality bearings throughout bring incredible rudder feel to your favourite simulators. The R1 series is built heavier and more durable than the ACE series, with an ultra-stable floor plate designed to prevent tipping even under aggressive combat rudder inputs.

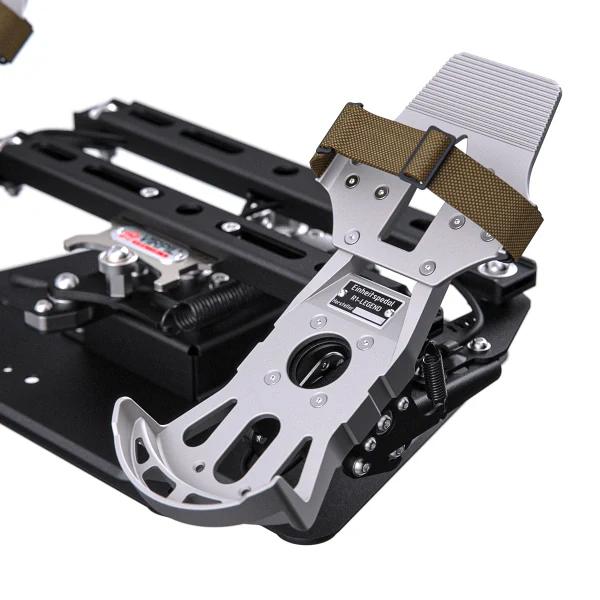

Swappable footplates
Customise your R1-LEGEND pedals.
Change footplate style in minutes
Easily swap the R1-LEGEND's full-foot warbird footplates to the R1-FALCON half-foot modern combat style footplates, available as a separate purchase. The footplate swap takes only minutes and lets you change the look and feel of the pedals without replacing the base unit.
Ultimate precision
VPC Digital Contactless Sensor.
14-bit native resolution — 0.02° angle detection
Built with VIRPIL's custom contactless digital sensors with 14-bit native resolution and 0.02-degree angle detection, the R1-LEGEND brings incredible precision and accuracy to every rudder input. Magnetic sensing means no contact and no wear, ever, for long-term reliability. These are the same sensors used across the entire VIRPIL lineup.

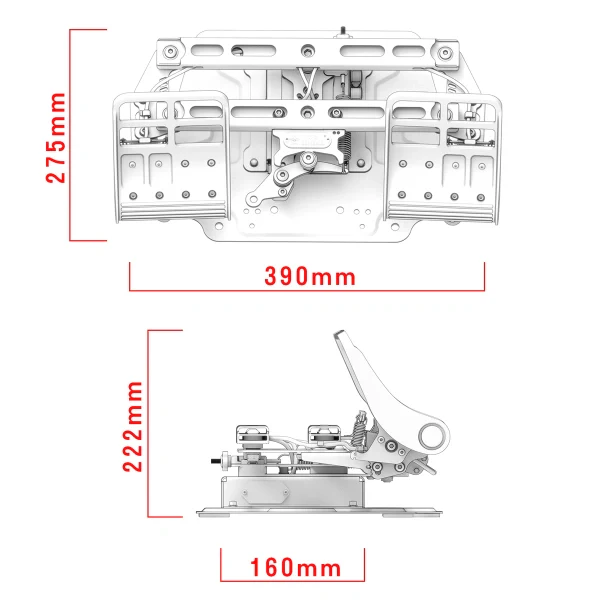

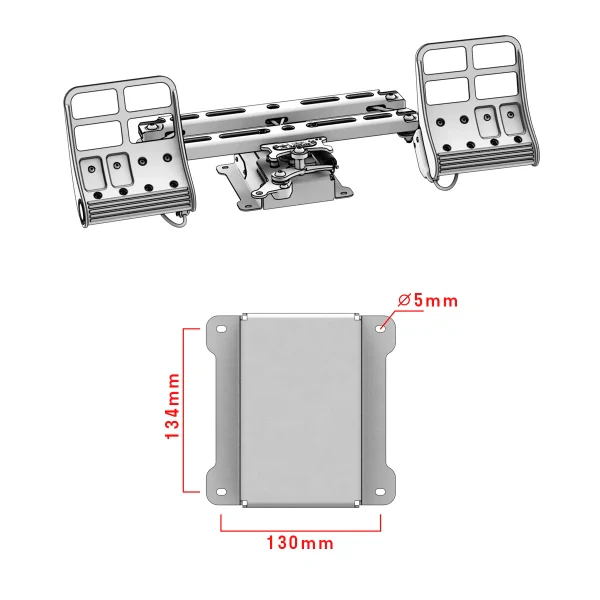

Technical specifications
VPC R1-LEGEND Rudder Pedals — full spec sheet
What's included
In the box
- VPC R1-LEGEND Rudder Pedals
- Soft Center cams (pre-installed)
- Hard Center cams
- No Center cams
- Standard spring (pre-installed)
- Heavy spring
- USB-A cable
- Hex keys
- Quick start guide
Common questions
Frequently asked questions
What is the difference between the R1-LEGEND and R1-FALCON?
The R1-LEGEND comes with full-foot combat warbird-inspired aluminium footplates with foot straps, while the R1-FALCON uses half-foot modern combat style footplates. The mechanism and all adjustments are identical, the difference is purely the footplate style. Both are swappable, so you can purchase either footplate set separately to change the style of either pedal model.
What is the optional damper upgrade kit and do I need it?
The R1 Pedals Damper Upgrade Kit adds a high-quality hydraulic damper to the rudder axis. It reduces spring bounce when returning to centre and can be adjusted to hold the pedals in a deflected position, removing the centering force entirely. It's particularly recommended for helicopter and space sim pilots who want smooth, drift-free rudder inputs. For fixed-wing combat and GA pilots, the standard cam and spring setup is excellent on its own.
How does the twist dial spring tension adjustment work?
The R1 features a twist dial that adjusts the spring pre-tension continuously without any disassembly or tools. Turn it to increase or decrease the centering force on the fly. This is combined with the swappable spring weights and cam profiles for an enormous range of possible configurations.
What cam should I use?
Soft Center (pre-installed) suits most pilots, providing a subtle tactile centre marker without being overpowering. Hard Center gives a stronger, more definitive centre point, ideal if you frequently need to precisely return to neutral. No Center removes the detent entirely, best combined with the damper kit for helicopter pilots who want the pedals to hold position without returning to centre.
Are these compatible with all sims?
Yes, the R1-LEGEND connects as a standard USB HID device and is compatible with every sim that supports controller inputs: DCS World, Microsoft Flight Simulator 2024, X-Plane 12, IL-2 Sturmovik, Star Citizen, Elite Dangerous and more. No drivers required.
What warranty and returns cover the R1-LEGEND Rudder Pedals?
They're backed by a 2-year VIRPIL manufacturer warranty, handled locally by Player1 Sim Gear as the official Australian distributor, so there are no international returns for warranty work. You also get a 14-day change-of-mind return: item in original, unused condition with all packaging, accessories and cam sets, refund less return shipping and a 5% handling fee. Full Australian Consumer Law protection applies. Call 0488 385 870 with any questions.
Do you ship to all of Australia? How long does delivery take?
Yes, we ship Australia-wide from our Queensland warehouse. Same-day or next business day dispatch. Delivery typically takes 2–8 business days depending on location. Call 0488 385 870 for current stock and express options.
Why buy from Player1 Sim Gear rather than directly from VIRPIL overseas?
Player1 Sim Gear is the official VIRPIL distributor for Australia and New Zealand. Buying locally means full Australian Consumer Law protection, a valid Australian GST tax invoice, warranty handled locally (no international shipping for repairs), Australian stock, and a team you can call on 0488 385 870 who actually flies sims like DCS and MSFS on this gear.
Build the full experience
Complete your sim cockpit
Pair your R1-LEGEND Rudder Pedals with a VIRPIL flightstick, throttle and cockpit frame for the complete HOTAS flight sim experience.
