The Story
Throttle — Next Generation — Expert Series
VPC VMAX Prime Throttle
Next Generation Throttle Control.
The VPC VMAX Prime is VIRPIL's next-generation throttle, with 7 axes and 49 button inputs, metal handles with rubber grip pads, a customisable front-lift detent system, swappable button modules, a contactless analogue stick and adjustable throttle axis tension. Designed for expert pilots across fixed-wing, rotary and space sims.
Official Australian and New Zealand VIRPIL Distributor
Official Australian and New Zealand VIRPIL DistributorTotal inputs
7 axes. 49 button inputs.
| Function | Qty |
|---|---|
| Momentary push button | 12 |
| 4-way hat (+ push) | 2 |
| 2-way hat (+ push) | 1 |
| Contactless analogue stick (+ push) | 1 |
| Contactless dial axis (+ push) | 1 |
| Digital axis dial (+ push) | 1 |
| Contactless throttle axis | 2 |
| Contactless auxiliary axis | 1 |
| Encoder dial (+ push) | 2 |
| Momentary toggle switch ([ON]-OFF-[ON]) | 5 |
| Mode switch dial | 1 |
| Total button inputs (expandable with mode and shift functions) | 49 |
Why VMAX Prime
The next generation of throttle control.
Metal handles with rubber grip pads
Premium metal throttle handles with ergonomic rubber pads, formed to the natural shape of your hands for comfort during extended sessions. The button layout has been reworked from previous VIRPIL throttles to eliminate crowding and minimise accidental inputs.
Customisable front-lift detent system
Four detent plate types included: Classic Plus (lift to pass, extra tactile bump), Warthog-Type (lift to pass and return), Aerobatic (push through), and CosmoSim (push-through central detent). Plates adjust forwards and backwards and can be mixed between sets for a huge range of configurations.
Contactless analogue stick, zero drift
The analogue thumbstick has been upgraded to a contactless digital module, delivering immense precision and zero stick-drift. Critical for TDC slew in DCS World, where even minor stick-drift causes sensor creep during sensor management.
Swappable input modules
The pre-installed hat switches and thumb button can be swapped to 4-way + push hat configurations, letting you customise your input layout to match your aircraft and flying style without any soldering or modification.
Adjustable throttle axis tension
Tune the resistance of each throttle axis to your preference: lighter for fast combat inputs or heavier for precise throttle management during delicate approaches. Adjustable without disassembly.
Eco-leather Expert Series cover included
The VMAX Prime includes a premium eco-leather Expert Series dust cover, keeping your throttle protected when not in use with a cover that matches the quality of the unit itself.
Next generation throttle control
VMAX Prime Throttle.
Expert Series — 7 axes — 49 buttons
Introducing the next generation of throttle control. The VPC VMAX Prime features a huge range of inputs, including 7 total axes and 49 button inputs, expandable further with mode and shift functions. Designed to integrate into any VPCockpit or run as a standalone desktop throttle unit, it is rated 5 stars across fixed-wing mil sim, fixed-wing GA, rotary and space sim categories.
Metal construction
Metal handles. Rubber grip pads. New ergonomic design.
Premium metal construction and throttle handles
New ergonomic design
Premium metal construction throughout, including metal throttle grip handles with rubber pads. The VMAX Prime's all-new handles are formed to the natural shape of your hands, bringing comfort during extended airborne sessions. The button layout has been completely reworked from previous VIRPIL throttle designs to eliminate crowding and minimise accidental inputs.

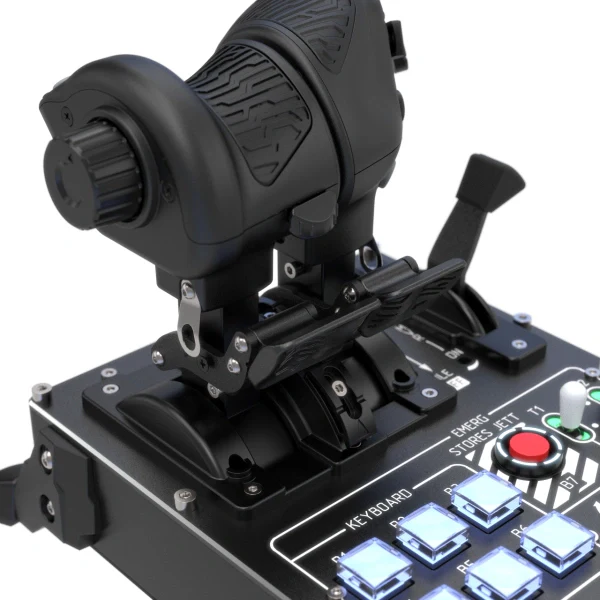

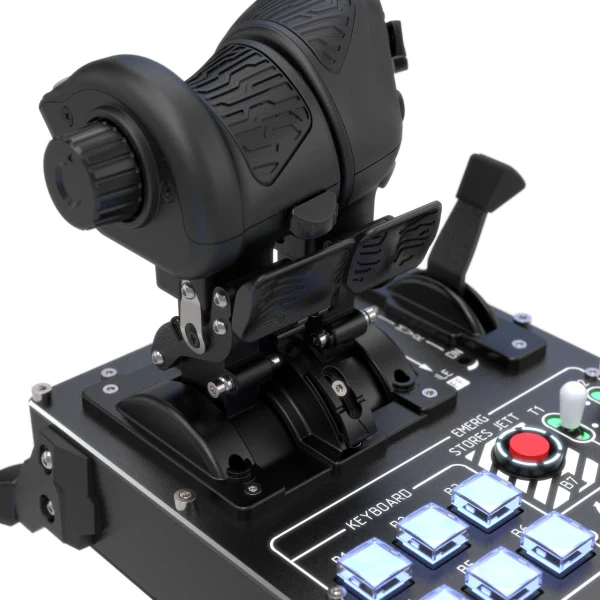

Detent system
Adjustable detent system. Four plate types included.
Four detent plate types, mix and match
Configure to prevent accidental idle cutoff or afterburner
The VMAX Prime detents can be configured to require lifting to pass through a detent, preventing accidental crossover into idle cutoff or afterburner range. Alternatively, push-through plates provide tactile feedback without requiring detent lifts. All four types are included:
- Classic Plus lift to pass detents, push return, with an additional tactile bump immediately after lifting.
- Warthog-Type lift to pass and lift to return detents.
- Aerobatic push through and push return detents.
- CosmoSim push-through central detent.
Detent plates adjust forwards and backwards within the axis range, and plates can be mixed between sets for a huge number of configuration possibilities.
Ultimate precision
VPC Digital Contactless Sensors.
14-bit native resolution — 0.02 degree angle detection
The VMAX Prime uses VIRPIL's custom contactless digital sensors throughout, bringing incredible precision and accuracy to throttle and axis inputs. No contact means no wear, ever. The contactless analogue stick also uses this technology, eliminating the stick-drift that plagues conventional potentiometer-based sticks.

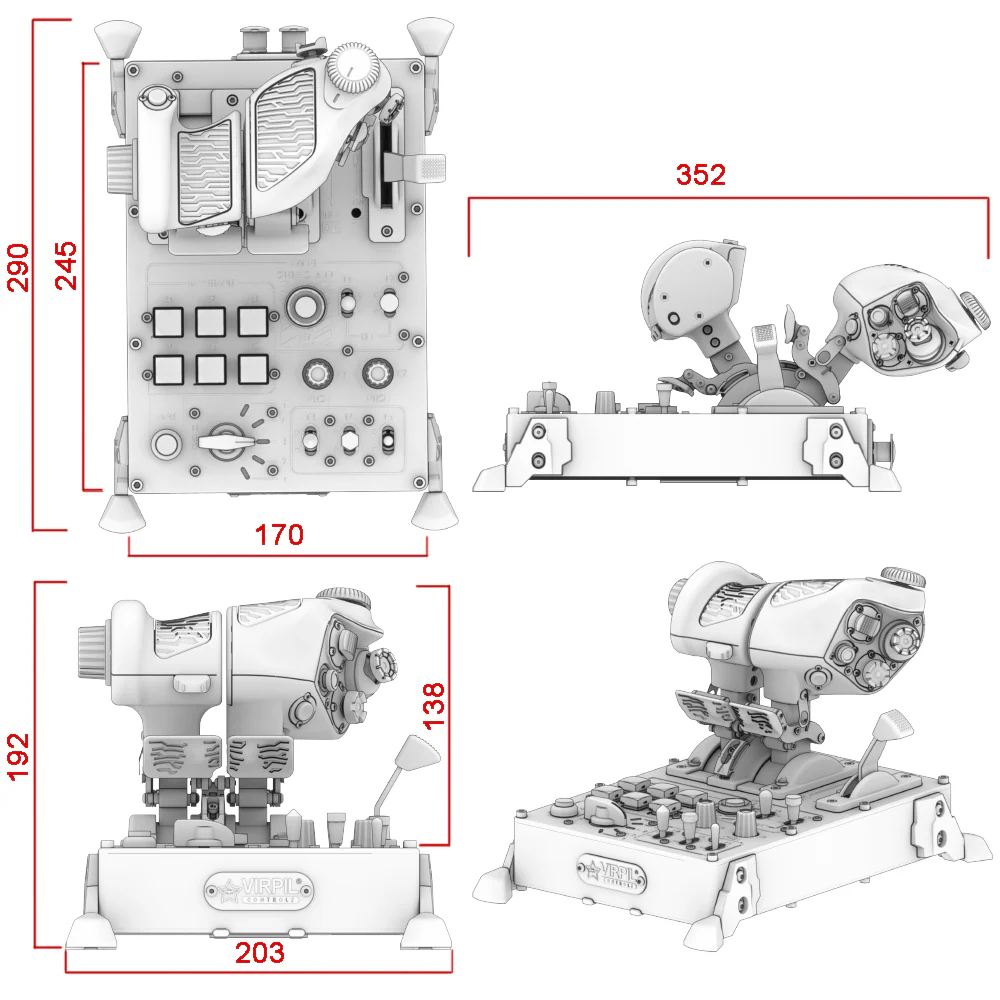

Technical specifications
VPC VMAX Prime Throttle — full spec sheet
What's included
In the box
- VPC VMAX Prime Throttle
- Classic Plus detent plates (pre-installed)
- Warthog-Type detent plates
- Aerobatic detent plates
- CosmoSim detent plates
- Eco-leather Expert Series cover
- USB-A cable
- Hex keys
- Quick start guide
Common questions
Frequently asked questions
Does the VMAX Prime Throttle require a flightstick base?
No, the VMAX Prime is a standalone throttle unit. It connects directly to your PC via USB and works alongside any flightstick or HOTAS setup. It can be used on a desktop or integrated into a VPCockpit cockpit frame.
What detent plate type should I use for DCS World?
For most DCS fixed-wing aircraft, Classic Plus or Warthog-Type detents are recommended, as both require lifting to pass through the idle cutoff detent, preventing accidental engine shutdown during combat manoeuvres. For DCS helicopters or space sims where you want smooth continuous throttle movement, the Aerobatic or CosmoSim push-through plates work better. All four types are included.
How many total inputs does the VMAX Prime have?
49 button inputs and 7 axes. Button inputs can be further expanded using mode switch and shift state functions in the free VPC Configuration Suite, effectively multiplying the number of unique inputs available.
What is the contactless analogue stick and why does it matter?
The analogue thumbstick uses a contactless digital sensor (the same Hall-effect technology used in VIRPIL joystick gimbals) instead of a conventional potentiometer. This means zero stick-drift, ever. In DCS World this is critical for TDC slew, as even tiny amounts of stick drift cause the sensor to creep off target during sensor management.
Can I adjust the throttle axis tension?
Yes, the VMAX Prime throttle axis tension is adjustable without disassembly. Tune each axis from light (fast combat throttle movements) to heavy (precise slow throttle management during approach and landing) to match your aircraft and flying style.
Do I need any software or drivers?
No drivers required, it works immediately as a standard USB HID device. For advanced configuration (axis curves, button mapping, shift states, mode functions, virtual axes) the free VPC Configuration Suite is available from the VIRPIL support portal.
What warranty and returns cover the VMAX Prime Throttle?
It's backed by a 2-year VIRPIL manufacturer warranty, handled locally by Player1 Sim Gear as the official Australian distributor, so there are no international returns for warranty work. You also get a 14-day change-of-mind return: item in original, unused condition with all packaging, accessories and detent sets, refund less return shipping and a 5% handling fee. Full Australian Consumer Law protection applies. Call 0488 385 870 with any questions.
Do you ship to all of Australia? How long does delivery take?
Yes, we ship Australia-wide from our Queensland warehouse. Same-day or next business day dispatch. Delivery typically takes 2–8 business days depending on location. Call 0488 385 870 for current stock and express options.
Why buy from Player1 Sim Gear rather than directly from VIRPIL overseas?
Player1 Sim Gear is the official VIRPIL distributor for Australia and New Zealand. Buying locally means full Australian Consumer Law protection, a valid Australian GST tax invoice, warranty handled locally (no international shipping for repairs), Australian stock, and a team you can call on 0488 385 870 who actually flies sims like DCS and MSFS on this gear.
Build the full experience
Complete your sim cockpit
Pair your VMAX Prime Throttle with a VIRPIL flightstick, rudder pedals and cockpit frame for the complete HOTAS flight sim experience.
Not sure which VIRPIL throttle is right for you?
Our team flies DCS World, Microsoft Flight Simulator and other serious sims on VIRPIL Controls gear. We can help you build the right HOTAS setup for your cockpit and budget.
